PermaSnap Premier vs PermaSnap Premier Plus

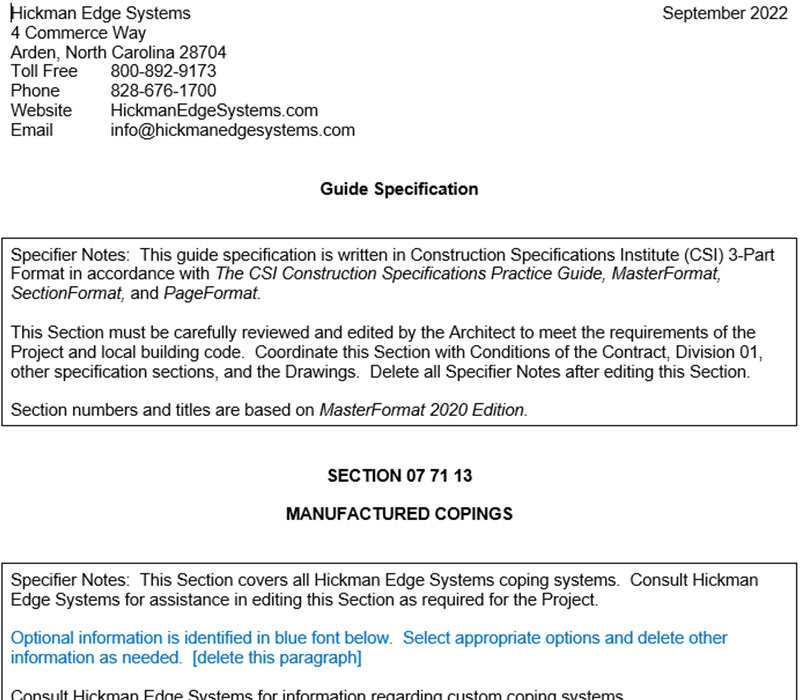

Division 7 CSI Specification Guide: Coping

PermaSnap Premier Plus Coping Order Specification

Features and Benefits
Warranty

This product has a Lifetime, 215 mph wind warranty
Details
  • Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code.
  • Factory Mutual approved for wind uplift protection.
  • Miami-Dade Approved to comply with the High Velocity Hurricane Zone of the Florida Building Code.
  • A full, snap-on design in 12'-0" lengths with no crimping make for quick installation and low labor costs.
  • Pre-punched fastening holes ensure proper attachment to the building substrate.
  • Corrosion resistant, stainless steel springs are factory attached to the anchor clips and provide long-term, positive spring loading.
  • Factory fabricated miters provide a cleaner, more aesthetically pleasing appearance. This eliminates the need for field fabrication, providing time and labor savings.
  • All fasteners and concealed splice plates are provided. The splice plates come with dual non-curling isocryl butyl sealant strips that allow for thermal movement of materials and seals all joints.


Premier Technical Data
Wall Sizes
(TESTED)		 Front/
Outside Face
(TESTED)


Back/Inside Face
(TESTED)

 Cover Materials Clip Gauge
Min. 3.5"
Max 24" (24 ga., .040")
Max 32" (22 ga., .050", .063")		 Min. 3.5"
Max. 12"		 Min. 2.75"
Max. 4"		 22 ga., 24 ga. Galv. Steel
.040", .050", .063" Aluminum.		 16 ga. Galv. Steel

Product Downloads

Wind Calculator

Please note that these calculations are based on U.S. measurements and roofing practices, and may not be sufficient or applicable for use outside of North America.
