TerminEdge One Order Specification

TerminEdge One Fascia Sell Sheet

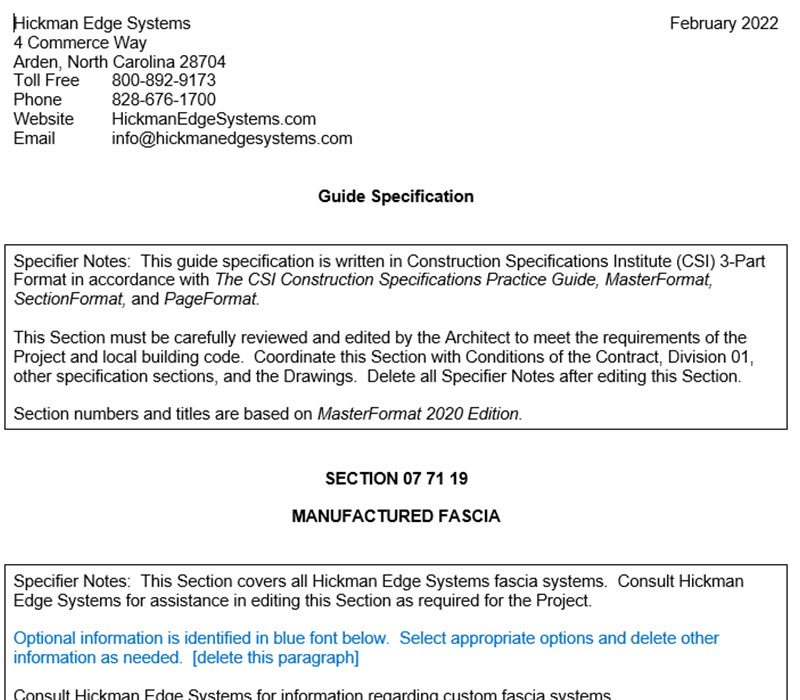

Division 7 CSI Specification Guide: Snap-on Fascia for Single-Ply Membrane Systems

Features and Benefits
Warranty

20-Year, 120 mph Wind Warranty
Details
  • - Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code
  • - Factory Mutual approved for wind uplift protection
  • - Miami-Dade Approved to comply with the High Velocity Hurricane Zone of the Florida Building Code
  • - Provided in 12 ft. lengths and pre-punched slotted holes helps to reduce installation time and allow for proper thermal movement
  • - All fasteners are included and will arrive to the job site with the product (sealant by others)
  • - Lap joint provided with 24 ga, 22 ga, and .040". Splice plate included with .050" and .063"
Technical Data
  • Cover Materials: 24 ga. or 22 ga. galvanized steel and .040", .050", and .063" aluminum
  • Standard sizes: 4", 5", 6.5", and 8" for one to four nailer coverage
Face Height (in) Nailers Covered
4 1
5 2
6.5 3
8 4

Product Downloads

Wind Calculator

Please note that these calculations are based on U.S. measurements and roofing practices, and may not be sufficient or applicable for use outside of North America.
