TerminEdge Drip Edge EX Installation Animation

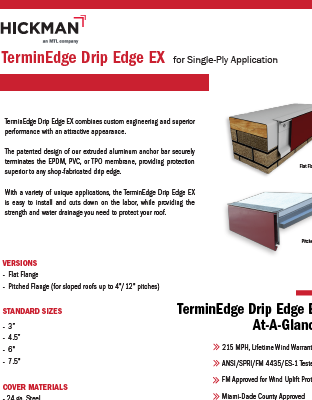

TerminEdge Drip Edge EX Sell Sheet

Division 7 CSI Specification Guide: Snap-on Fascia for Single-Ply Membrane Systems

Features and Benefits
Warranty

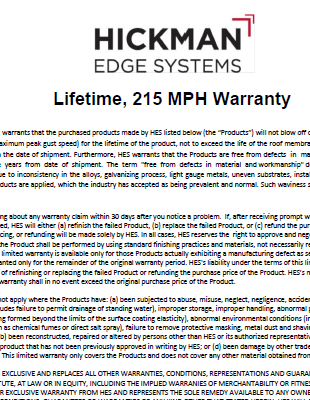

Lifetime, 215 mph Wind Warranty
Details
  • - ANSI/SPRI/FM-4435 ES-1 Tested to comply with International Building Code.
  • - FM Approved for wind uplift protection.
  • - Miami-Dade County Approved  to comply with the High Velocity Hurricane Zone of the Florida Building Code.
  • - Provided in 12'-0" lengths with pre-punched holes for quicker installation and lower labor costs.
  • - Slotted fastening holes allow for thermal movement of the materials and ensure correct fastener placement and spacing.
  • - All anchor bar EPDM splice plates, lap joints, and fasteners are included (Sealant by others)
  • - Anchor bar can be removed, cleaned and reinstalled at any time without compromising its strength and appearance.
Technical Data
  • Cover Materials: 24 ga. and 22 ga. galvanized steel and .040" aluminum
  • Standard sizes: 3", 4.5", 6", and 7.5" for one to four nailer coverage

Face Height (in) Nailers Covered
3 1
4.5 2
6 3
7.5 4

Product Downloads

Wind Calculator

Please note that these calculations are based on U.S. measurements and roofing practices, and may not be sufficient or applicable for use outside of North America.
