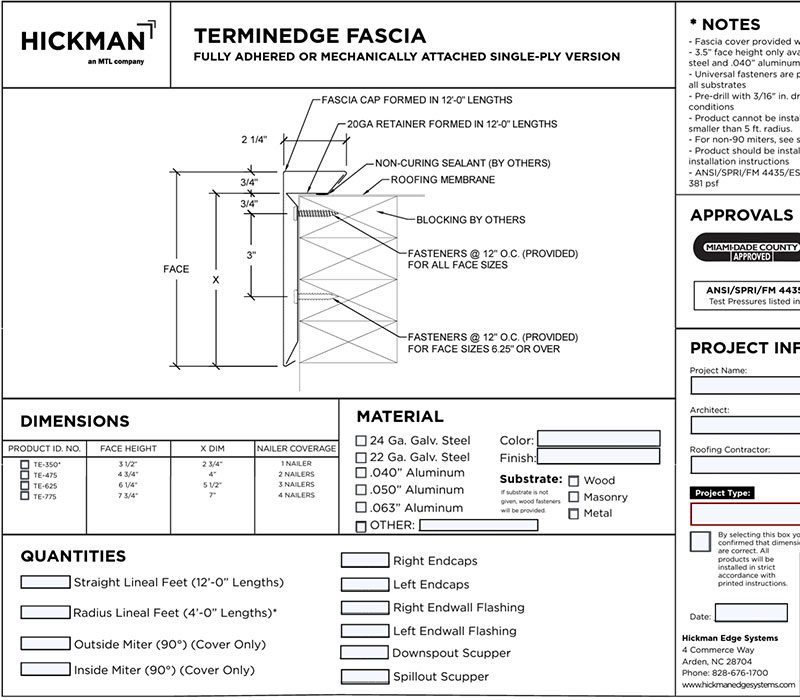

TerminEdge Fascia Order Specification

TerminEdge Fascia Sell Sheet

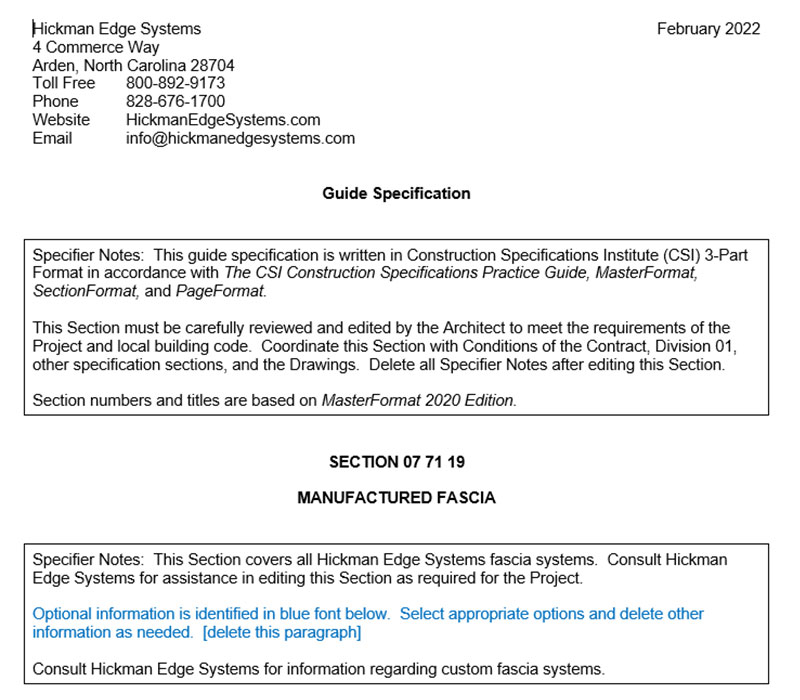

Division 7 CSI Specification Guide: Snap-on Fascia for Single-Ply Membrane Systems

Features and Benefits
Warranty

20-Year, 120 mph Wind Warranty
Details
  • - Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code*
  • - Factory Mutual approved for wind uplift protection*
  • - Miami-Dade Approved to comply with the High Velocity Hurricane Zone of the Florida Building Code*
  • - Provided in 12 ft. lengths and pre-punched slotted holes helps to reduce installation time and allow for proper thermal movement
  • - All fasteners and splice plates are included and will arrive to the job site with the product (sealant by others)
Technical Data
  • Materials: 24 ga. or 22 ga. galvanized steel and .040", and .050" aluminum
  • Standard sizes: 3.5", 4.75", 6.25", 7.75", 9.25", 10.75", and 12.25" for one to seven nailer coverage
Face Height (in) Nailers Covered
3.5 1
4.75 2
6.25 3
7.75 4
9.25 5
10.75 6
12.25 7

* TESTED UP TO 9.25" FACE HEIGHT

Product Downloads

Wind Calculator

Please note that these calculations are based on U.S. measurements and roofing practices, and may not be sufficient or applicable for use outside of North America.
